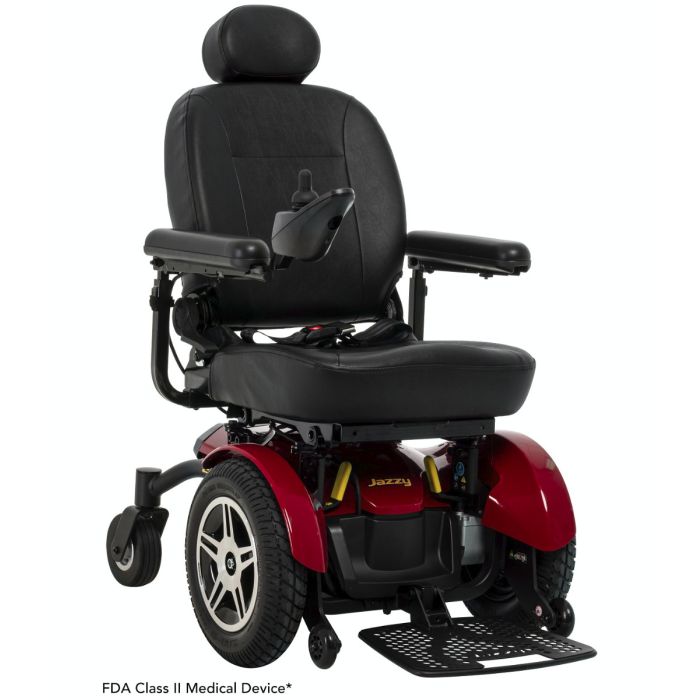

Pride Jazzy Elite HD Power Wheel Chair
The Pride Jazzy Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance in a stylish, highly maneuverable package.
FDA Class II Medical Device*
The Pride Jazzy Elite HD Power Wheel Chair delivers an impressive list of performance and convenience features such as a powerful 60 amp controller, larger batteries for greater per-charge range, and a 450 lbs. weight capacity. Plus, it offers seating selections as large as 24”W x 24”D.450 lbs. weight capacity
• Up to 4 mph maximum speed
• 24" turning radius
• Up to 9.8 miles per charge
• Comfortable, depth-adjustable, limited recline high-back seat with headrest
• Easy rear access to batteries
• Intuitive controller is easy to operate
• Color-through shroud
• Angle-adjustable foot platform offers greater comfort
• Front-wheel drive design for excellent maneuverability
• 14" knobby tires and optimum weight distribution provide superior traction
• 60-amp controller
• Extended 13-month limited warranty
Details and Specifications for the Pride Jazzy Elite HD Power Wheel Chair
|Model||Jazzy® Elite HD|
|Weight Capacity||450 lbs.|
|Maximum Speed3||Up to 4.0 mph|
|Front Wheels||3" solid anti-tips|
|Drive Wheels||14" foam filled|
|Rear Wheels||6" solid casters|
|Drivetrain||Two motor, front-wheel drive|
|Braking System||Regenerative and electro-mechanical)|
|High-Back Seat (max. size)||24"W x 24"D|
|High-Back Seat-to-Floor Range||20” – 22”|
|Synergy® Seating||24”W – 24”D|
|Synergy® Seat-to-Floor Range||15.75” – 17.75”|
|Standard Electronics||60A, Dynamic Shark|
|Battery Size (2 required)||12 volt, NF-22|
|Standard Battery Charger||5A, off-board|
|Per-Charge Range3,7||Up to 12.5 miles|
|Battery Weight6||37 lbs. each|
|Weight of Heaviest Piece4||99 lbs.|
|Standard Seat Weight||18" wide - 51.8 lbs., 20" wide - 54 lbs., 22" wide - 57.6 lbs.|
|Standard Seat Size||20" x 18"-20"|
|Medicare Code Coverage||Group 2 Heavy Duty (K0824/K0825)|
|Warranty||5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.|
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18" deep seat configurations.
6 Battery weight may vary based on manufacturer.
7 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
|The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.|
WARNING: This product can expose you to chemicals including lead and lead components, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture
Manual and Videos for the Pride Jazzy Elite HD Power Wheel Chair
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the Pride Jazzy Elite HD Power Wheel Chair
- One Year In-Home Service Warranty
- 5-year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
- Click here for more information.
