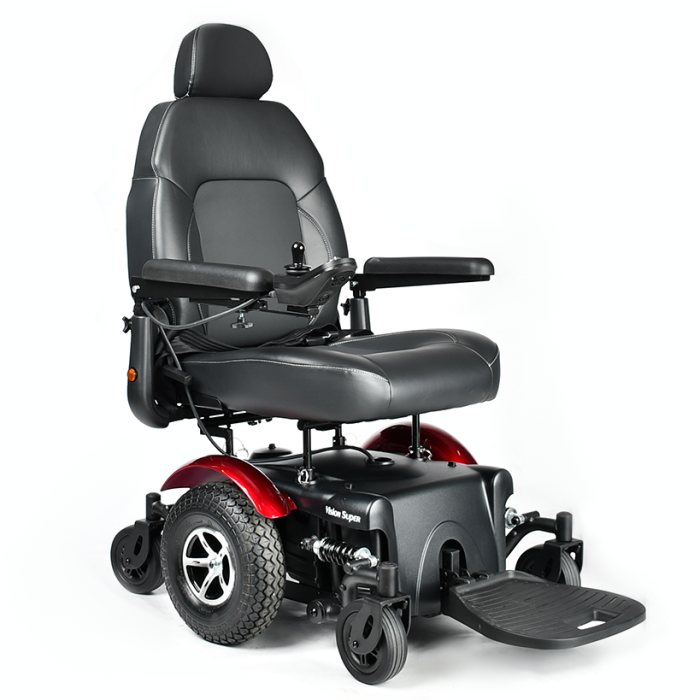

Merits P327 Vision Super Bariatric
The P327 bariatric electric wheelchair delivers outstanding manauverability in tight, compacy spaces and a smooth, stable ride both indoors and outdoors even over rough and uneven terrain.
The P327 bariatric electric wheelchair mid-wheel drive delivers outstanding maneuverability in tight, compacy spaces and a smooth, stable ride both indoors and outdoors even over rough and uneven terrain. Its high performance suspension, together with the advantages of the in-line motor technology for enhanced efficiency, torque, range and performance, make the P327 Merits electric scooter the best in its class.
- True mid-wheel drive: 20.7” turning radius
- Robust independent suspension can absorb up to 350 lbs on the footplate without tipping forward
- Premium, semi-reclining ergonomic seat, up to 135°
- 12” knobby drive tires for superior traction
- Dynamic LiNX & Shark controller for convenient Bluetooth programming and diagnostics
- 20” seat width with 18”-20” depth adjustability
- 22” or 24” seat widths with 20”-22” depth adjustability
- Red and blue color fenders included
- Note: Units with seat elevator are 400 lb. weight capacity
Details and Specifications for the Merits P327 Vision Super Bariatric
Seat Width |
20", 22" or 24" |
Seat Depth |
22" |
Seat Height |
22" - 23.2" |
Backrest Height |
22" |
Overall Length |
35" |
Overall Height |
48" |
Overall Width |
27" |
Total Weight |
273lbs |
Weight Capacity |
450lbs (Units w/seat elevator are 400 lb. capacity) |
Max Speed | 5mph |
Range | up to 20 miles |
Turning Radius | 20.7" |
Ground Clearance | 2.2" |
Motor | DC 24V, 300W x 2pcs |
Controller | LiNX, PG VR2 |
Battery | 12V/22NF x 2pcs |
Charger | 5A off-board |
Gradient | 8° |
Casters | 6" front and rear solid tires |
Drive Wheels | 12" Flat Free tires |
Brakes | Intelligent, regenerative, electromagnetic |
Manual and Videos for the Merits P327 Vision Super Bariatric
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the Merits P327 Vision Super Bariatric
18 Month limited parts warranty on electronic controller and drive train component
Six Month Battery Warranty
Extended Service Plans Details
- Effective date starts when product is purchased by the customer
- Contracts can only be purchased at the point of sales (can’t be purchased after the fact)
- Contracts are valid on scooter and standard power wheelchairs
Service Plan Cover Labor Costs
- During the contract period specific parts costs are covered under warranty, these parts and time periods are specified in the owner’s manual
- After parts warranty has expired there may be charges for any additional parts needed.
What is Not Covered Under War-ranty
- Any damage or issue that was caused by product misuse. Misuse is outlined in the product own-er’s manual
- Instructional use of product
- Programming to customer's needs
- Adjustments or fittings to meet customer’s needs
- Issues regarding, fabric, tires or any wear-and-tear components
- Shipping Damage or product set-up
- Batteries
Procedure for Requesting Service
- Customers should call Merits Health Products to request service at 1-800-963-7487
Information needed to process Service Call
- Model and Serial Number
- Customer’s name, address and phone number
- A detailed description of issue
- Customer should discontinue use of product immediately upon discovery of problem
- Technical service will enter all information and request a technician dispatch
- The closest technician will be contacted and given a work order to complete the repairs
- Field service jobs are typically set up in 24-48 hours of initial request
- The customer is contacted within 24hrs of the job being set-up to advise them who will be calling to schedule a home visit.
- If there is no technician in the area one will be recruited. This process can take up to 5-7 busi-ness days depending on the location.
- Upon receipt of parts the technician will con-tact the customer to set-up an appointment that.
