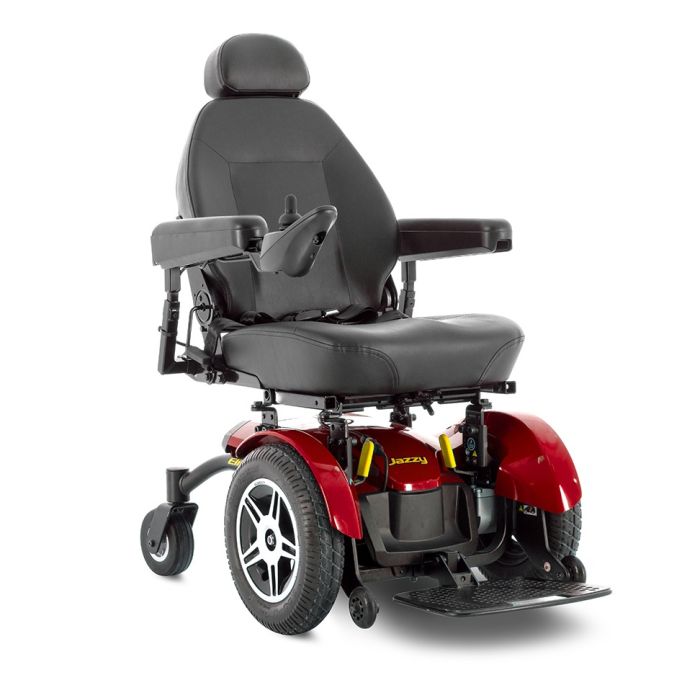

Pride Jazzy Elite 14
The Jazzy Elite 14 provides the perfect blend of indoor and outdoor performance.
FDA Class II Medical Device*
JAZZY® ELITE 14 Features:
- 300 lbs. weight capacity
- Up to 4 mph maximum speed
- 24" turning radius
- Up to 9.8 miles per charge
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- Easy rear access to batteries
- Intuitive controller is easy to operate
- Angle-adjustable foot platform offers greater comfort
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color-through shroud
- 50-amp controller
- Extended 13-month limited warranty
Details and Specifications for the Pride Jazzy Elite 14
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Elite 14
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Width1 | 24.25" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4.0 mph |
| Ground Clearance1 | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" foam filled |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 22"W x 22"D |
| High-Back Seat-to-Floor Range | 20” – 22” |
| Synergy® Seating | 20”W – 20”D |
| Synergy® Seat-to-Floor Range | 15.75” – 17.75” |
| Standard Electronics | 50A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,6 | Up to 9.8 miles |
| Battery Weight5 | 37.5 lbs. each |
| Weight of Heaviest Piece4 | 99 lbs. each |
| Standard Seat Weight | 52 lbs. (high-back) |
| Standard Seat Size | 18" x 18"-20" 20" x 18"-20" 22" x 20"-22" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
WARNING: This product can expose you to chemicals including lead and lead components, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture
Manual and Videos for the Pride Jazzy Elite 14
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the Pride Jazzy Elite 14
One Year in Home Parts and Labor Warranty
- 5-year limited on frame
- 13-month limited on electronics
- 13-month on drive motors
- 13-month limited on batteries
