EV Rider TranSport AF+ Deluxe - Auto Fold
Completely Folds up electrically with the press of a button without manual assistance.
In stock
$2,250.00
SIMILAR MODELS
- Automatic Folding & Unfolding with one touch Remote Control
- Dual front tires for added stability,
- Upgraded 11.5Ah Lithium battery for longer driving range (pleased note all of our batteries including the lithium batteries are approved for airline travel),
- On/Off switch located next to the charging port to safe battery power,
- An actuator lock on the folding mechanism for added safety.
- LED Headlight; Height adjustable tiller
- Key ignition
- Dual hand two way throttle control
- Lightweight: 49 lbs
- Folded Compact size: 17.7" x 16.5" x 30"
- 8" x 2" flat free drive wheels

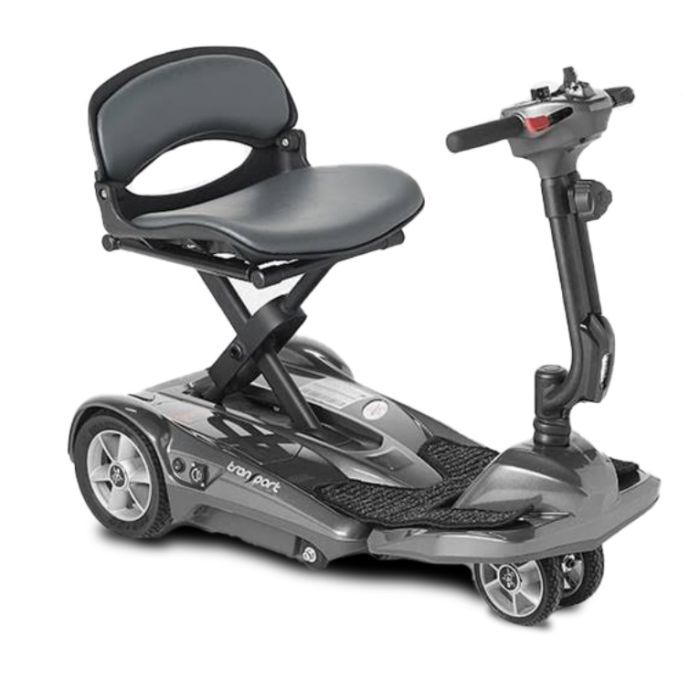

EV Rider Transport AF+ Deluxe - Auto Folding Mobility Scooter
The EV Rider Folding scooter automatically folds up with your handheld remote. With the push of a button, it automatically folds in seconds! Approved for airline travel, the S19AF is equipped with an 8.7Ah lithium battery and weighs just 44 lbs making it perfect for travel on planes, trains, and cruise ships.
Due to its ultra tight turning radius, this compact scooter offers great maneuverability in narrow spaces. It features a height adjustable tiller, LED headlight, and dual hand two way throttle control. It can be stored virtually anywhere and easily fits in the trunk of most automobiles. Just press the button and watch this innovative scooter unfold!
Details and Specifications for the EV Rider TranSport AF+ Deluxe - Auto Fold
| Overall Length | 33.5″ in |
| Overall Width | 16.5″ in |
| Overall Height – at Maximum Tiller Height | 33.5″ in |
| Overall Height – at Minimum Tiller Height | 30″ in |
| Legroom – Floorboard Length x Width | 17″ in |
| Deck Height – Floorboard to Floor | 4.8″ in |
| Ground Clearance | 1.4″ |
| Turning Radius | 31″ in |
| Folded Overall Length | 30” |
| Folded Overall Width | 16.5″ |
| Folded Overall Height | 17.7” |
| Weight with Opt. 112V11.5Ah Li Ion Batteries | 49 lbs |
| Seat Type | Folding Mobility Seat |
| Seat – Width & Depth & Height | 15″ W x 12″ Depth x 9″H |
| Seat – Cushion Thickness | 1″ in |
| Seat Height – Cushion to Deck | 15″ in |
| Seat Height – Cushion to Floor | 19.7″ in |
| Tire Type | Solid Tires |
| Rim Type Rear | Industrial Plastic |
| Rim Type Front | Industrial Plastic |
| OEM Spec Rear | N/A |
| Outside Diameter Rear | 8″ |
| Tire Width Rear | 2″ |
| OEM Spec Front | N/A |
| Outside Diameter Front | 6” |
| Tire Width Front | 1.4″ |
| Battery Type & Power | 24V 11.5Ah Lithium Ion x1 (included) |
| Brake System | Electromagnetic |
| Climbing Angle – Maximum Recommended | 3 degree |
| Charger Type | Off Board Li-Ion Charger
2.5 Amp 24 VDC, input: 110/240 Vac |
| Charging Time | 4 – 6 hrs |
| Controller | Dynamic R‐Series 50A |
| *Driving Range | Up to 10 miles |
| Load Capacity | 250 Lbs |
| Motor & Drive Location | 180 watt 24 volt |
| *Speed – Maximum | up to 3.8 mph * |
| Colors | Blue, Copper, Bugurndy, Silver |
| Tiller Type | T-Shape Type |
| Throttle Control Type | Pot Meter |
| Anti-Tipper Wheels-Rear | Rear Casters – Standard |
SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.

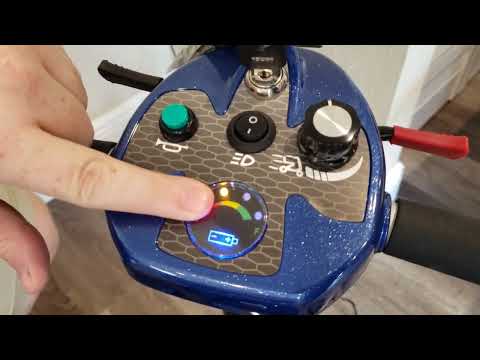

Manual and Videos for the EV Rider TranSport AF+ Deluxe - Auto Fold
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the EV Rider TranSport AF+ Deluxe - Auto Fold
Warranty by EV Rider, LLC
One Year Parts Only Warranty
