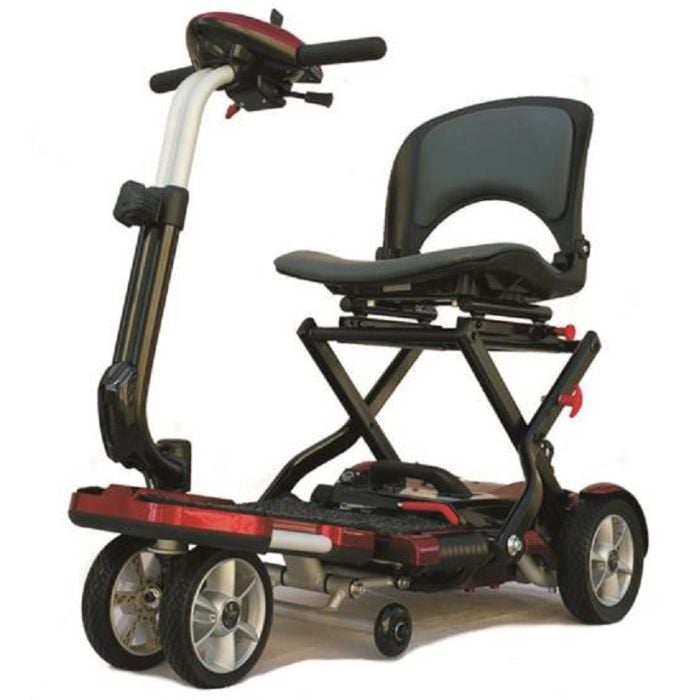

EV Rider Transport Plus
LED Light Package, Removable Seat and Weighs only 46 lbs without Battery and Seat
EV Rider Transport Plus - Folding Mobility Scooter
This new Transport Foldable scooter model has great portability or space saving!;The Transport scooter allows you to drive into your home, fold the unit up and roll it into a closet or out of the way. Or if you are traveling, you can fold it and place it in the back of the vehicle in a one or two pieces.
- Front and Rear LED Light Package
- Removable Seat
- Weighs 46 lbs without Battery and Seat
- A true 1,2,3 folding travel scooter
- Easy pull along design for hotels, airports or at home
- Can be towed upright in any closet
- Powerful 270 Watt 4-Pole motor
- Articulated front end increases stability
- 10 to 15 mile range
- Weight Capacity of 250 lbs
- Folding Seat with 16" Width
- 4 mph maximum speed
- Option of 12AH batteries or Lighter, Enviro-friendly Lithium Ion Batteries
- Ground Clearance of 2.4"
- Overall Dimension of 37" x 19"
Details and Specifications for the EV Rider Transport Plus
|Overall Length||36″ / 91 cm|
|Overall Width||21″ / 53 cm|
|Overall Height (at Maximum Tiller Height)||37” / 94 cm|
|Overall Height – at Minimum Tiller Height||31″ /78 cm|
|Legroom – Floorboard Length x Width||19″ x 13″ // 48 cm x 33 cm|
|Deck Height – Floorboard to Floor||6.5″ / 16 cm|
|Ground Clearance||2.4″ / 6 cm|
|Turning Radius||32″ / 81 cm|
|Folded Overall Length||31″ / 78 cm|
|Folded Overall Width||21″ / 48 cm|
|Folded Overall Height||18″ / 45 cm|
|Weight with Std.||70 lbs / 32 kg|
|Weight with Opt. 112V11.5Ah Li Ion Batteries||60 lbs / 27.2 kg|
|Weight without Batteries||53 lbs / 24 kg|
|Seat Type||Folding backrest, ABS plastic with high desity foam cushion|
|Seat – Width & Depth & Height||16″ x 13″ x 13″ // 40 cm x 33 cm x 33 cm|
|Seat – Cushion Thickness||1″ / 2.5 cm|
|Seat Height – Cushion to Deck||14″ / 35 cm|
|Seat Height – Cushion to Floor||20″ / 52 cm|
|Tire Type||Solid rubber front and rear|
|Rim Type Rear||Cast Aluminum|
|Rim Type Front||ABS Plastic|
|OEM Spec Rear||200 x 50|
|Outside Diameter Rear||8″ / 20 cm|
|Tire Width Rear||2″ / 5 cm|
|OEM Spec Front||180/40|
|Outside Diameter Front||7″ /17 cm|
|Tire Width Front||1.6″ / 4 cm|
|Battery Type & Power||Std. Two 12V12Ah SLA
Optional 25.2V11.5Ah Li Ion Battery Pack
|Brake System||Electromagnetic Brake|
|Climbing Angle – Maximum Recommended||6 degrees|
|Charger Type||2 Amp, 110/240 Volt SLA Charger
2.5Amp,110/240 Volt,Li-ION Charger
|Charging Time||4 – 6 hours|
|Controller||S-Drive 45 Amp|
|*Driving Range||up to 12 miles|
|*Load Capacity||250 lbs (115 kgs)|
|Motor & Drive Location||4-pole, 270 Watt, Rear-Wheel Drive|
|*Speed – Maximum||4 mph / 6.4 kmh|
|Colors||Blue, Red, Copper, Plum|
|Tiller Type||Height Adjustable|
|Throttle Control Type||Digital Wig-Wag|
(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.
Manual and Videos for the EV Rider Transport Plus
Warranty for the EV Rider Transport Plus
Warranty by EV Rider, LLC
SIX (6) MONTHS YEAR LIMITED WARRANTY
Six (6) months from the date of purchase on all structural frame components; including platform, seat post, and frame.
SIX (6) MONTHS LIMITED WARRANTY
Six (6) months from the date of purchase, if any part or electronic component of the Scooter is found upon examination to be defective in material and/or workmanship, it will be repaired or replaced, at EV Rider, LLC’s option, without charge. Labor charges are NOT included. The purchaser is responsible for the delivery to the authorized repair facility. Satisfactory proof of purchase, serial number and the date of purchase are always required. For warranty service, please contact the dealer/company from whom you purchased your EV Rider product.
SHIPPING - DOMESTIC: All warranty items will be shipped via Fedex Ground. Requested expedited shipping will be at the expense of the purchaser.
SHIPPING - INTERNATIONAL: Parts will be provided under warranty at no charge, but shipping to any offshore and/or international location will be the responsibility of the purchaser. International and offshore and-users must contact the dealer/distributor directly to initiate the warranty process.
ONE-YEAR WARRANTY EXCEPTIONS
Motor: In cases where there is an increase in the operational noise level, the warranty does not apply. (An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter). The batteries are warranted by EV Rider for 6 months after the purchase of the Unit. Service: Warranty service can be performed by EV Rider, LLC or by an authorized EV Rider, LLC service facility. Do not return faulty parts to EV Rider, LLC without prior consent. A request for a Return Authorization is required prior to returning items. All transportation costs and shipping damage incurred while submitting units and/or parts for repair or replacement are the responsibility of the original purchaser.
WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter.
This Warranty excludes:
• Batteries that are provided free with the scooter. See the EV Rider invoice/packing slip for additional detail.
• Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs,upholstery and seating, motor brushes, fuses, plastic shrouds and footrest covers, etc.)
• Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improperoperation, excessive loading, maintenance, or storage, commercial use or use other than normal.
• Used other than for the purpose of the purchaser’s mobility.
• Repairs and/or modifications made to any part of the scooter without specific and prior consent from EV Rider, LLC.
• Labor, service calls, shipping, and other charges incurred for repair of the product not approved by EV Rider, LLC.
Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear clause. Any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse or accidental damage and as such is not covered by the manufacturer’s warranty. There is no other express warranty.
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of the original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you.
