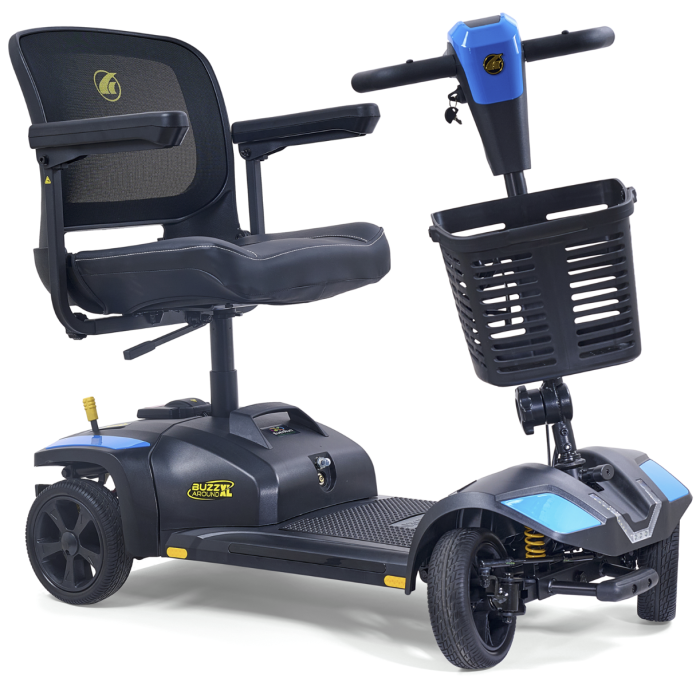

Buzzaround XL 4 Wheel
300 pound Capacity with Stadium-style height adjustable seat, Easy-to-access charging port and standard Delta tiller.
FREE 1-Year In-Home Service
Overview of the Golden Buzzaround XL 4 wheel scooter
Experience the most comfortable scooter in the portable travel scooter category with the 2015 XL Golden Buzzaround scooter! Our oversized deck provides more foot and leg room than any scooter in its class, giving you more space to stretch your legs and have more room to comfortably get on and off your scooter with ease!
The new Buzzaround XL scooters feature a bright, adjustable LED headlight so you can see and be seen!
When you’re ready to head home after a day on the town, the Buzzaround XL disassembles quickly, easily and wirelessly to fit in the trunk of virtually any car. There’s no better way to see the sites, spend time with the family or simply go shopping than with the all-new Golden Buzzaround XL scooters!
A FREE 1 Year In-Home Service Warranty
Highlights of the Buzzaround XL 4 Wheel
- Standard Delta Tiller
- The most motor torque in this scooter class
- Cut pile carpet on floor deck
- Solid tires - 8" x 2"
- Large 18" x 16" seat
- Very compact design still with good foot room
- Standard Front Basket
Summary Specs of the Golden Buzzaround scooter
- Top Speed: 4 MPH
- Driving Range: 8 Miles / 13 Miles with the 20ah Battery Pack
- Ground Clearance: 3"
- Turning Radius: 47"
- Carrying capacity: 300 lbs.
- Heaviest Part: 43 lbs.
- Total Weight: 109 lbs. / 119 lbs with the 18ah Battery Pack
Ideal uses for the Buzzaround XL model GB147
- Inside and outside use on smooth surfaces
- Individuals with arthritis or use of only one hand
- Those needing to sit for longer periods of time
- Those looking for the longest service warranty available
Details and Specifications for the Buzzaround XL 4 Wheel
Specification | GB-117/GB117S | GB-147/GB-147S |
Weight capacity | 300 lbs. | 300 lbs. |
Drive Wheels | Rear | Rear |
Maximum speed | 4 mph | 4 mph |
Operating Range 1 | 8 miles / 13 miles | 8 miles / 13 miles |
Ground Clearance under Deck | 3.0 in. | 3.0 in. |
Turning Radius | 37 in. | 47 in. |
Type Batteries | 2-12 AH / 2-20 AH | 2-12 AH / 2-20 AH |
Colors | Red, Blue | Red, Blue |
Freewheel Mode | Yes | Yes |
Electronic Speed Control | Yes | Yes |
Electro-Mechanical Brakes | Yes | Yes |
Charger | Off-board | Off-board |
Controller | 50 Amp Dynamic R-Series | 50 Amp Dynamic R-Series |
Length | 42.5 in. | 41.5 in. |
Width | 21.5 in. | 21.5 in. |
Height (ground to top seat back) | 33-35 in. | 33-35 in. |
Ground to top of Seat | 21-23 in. | 21-23 in. |
Ground to top of Deck | 4.75 in. | 4.75 in. |
Deck to top of Seat | 16-18 in. | 16-18 in. |
Number of Seat Height Positions | 3 | 3 |
Size of Increments | 1.0 in. | 1.0 in. |
Front axle to Rear axle | 33.5 in. | 32 in. |
Weight of Unit: (assembled) 3 | 101 lbs. | 109 lbs. |
Front Half | 35 lbs. | 43 lbs. |
Rear Half | 25 lbs. | 25 lbs. |
Seat with Arms | 20 lbs. | 20 lbs. |
Batteries | 21 lbs./ 31 lbs. pack | 21 lbs./ 31 lbs. pack |
Tires: | Solid | Solid |
Front | 8 in. | 8 in. |
Rear | 8 in. | 8 in. |
Rear Anti-Tip Wheels | 2 in. | 2 in. |
Standard Seat: | Stadium Style | Stadium Style |
Seat Back Height (no headrest) | 16 in. | 16 in. |
Width x Depth | 18” x 16” | 18” x 16” |
Color | Black Vinyl | Black Vinyl |
Optional Seat: | Stadium Style | Stadium Style |
Seat Back Height (no headrest) | 16.0 in. | 16.0 in. |
Width x Depth | 18” x 16”, 20” x 18” | 18” x 16”, 20” x 18” |
Color | Black Vinyl | Black Vinyl |
Warranty: | ||
Frame | Lifetime Warranty | Lifetime Warranty |
Drive Train | 2 Year Warranty | 2 Year Warranty |
Electronics 2 | 2 Year Warranty | 2 Year Warranty |
* Notes:
1. Battery range tested at 200 lbs., and will vary due to rider weight, drive surface, and terrain.
2. Electronics warranty excludes batteries.
3. Assembled weight calculated with the standard battery pack 2-12 AH batteries.
Manual and Videos for the Buzzaround XL 4 Wheel
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the Buzzaround XL 4 Wheel
Free 1 Year In-Home Labor Warranty
FRAME: Lifetime Warranty
DRIVE TRAIN: 2 Year Warranty
ELECTRONICS: 2 Year Warranty
BATTERIES: 1 Year Warranty
Golden Technologies, Inc
Limited-Service Agreement
ONE-YEAR TERM
This Limited-Service Agreement is administered by: GOLDEN TECHNOLOGIES, INC. To obtain service you must call WSR SOLUTIONS at 571-748-4999 within the applicable Term or Period of Coverage.
The Effective Coverage Period of the Service Agreement commences on the date of the first retail purchase, expires Twelve (12) months from the date of first retail purchase and is non-transferable.
This Service Agreement is an agreement whereby GOLDEN TECHNOLOGIES will furnish to the first retail purchaser of the Designated Product listed below, should it prove defective by reason of improper workmanship and/or material:
a. Parts. For the Coverage Term or Period as provided by the Service Agreement, we will repair or replace, at our option, the Designated Product listed below, without charge for the parts or the cost of shipping. Service as well as replacement for parts used in repair will be covered for the remainder of the product’s original Service Agreement term.
b. Labor. For the Coverage Term or Period as provided by the Service Agreement, we will provide the labor for the repair of any warranted items of the Designated Product listed below without charge by a PRE-AUTHORIZED service representative.
c. In Home Service. For the Coverage Term or Period as provided by the Service Agreement, those within a 60-mile radius of one of our service agents will be provided In Home Service. A representative will be allocated to your home to service the product listed below. In some instances, it may be necessary for the service agent to remove the product from your home for repair. There are no provisions to provide a replacement while these repairs are being made.
d. This Service Agreement is only available in the continental United States and excludes remote, rural areas (those outside 50 miles from the closest service agent) as well as the entire states of Alaska and Hawaii.
e. Golden Technologies reserves the right to terminate this Service Agreement at their discretion.
AGREEMENT NOTES:
- The consumer should receive acknowledgement from an authorized service center within 24-48 hours from their initial call to Golden Technologies
- Final repairs should be completed within 12 business days. Note: A product replacement, depending on the model, could result in a longer completion time.
- The repair or replacement process may require more than one visit to the consumer’s home.
- Life situations whether it be a pandemic, weather, disaster, or any other situation out of normal control nationally, regionally, locally, or worldwide, may delay the start, and/or the completion of the service needed.
EXCLUSIONS:
This Limited Service Agreement does not cover any item requiring replacement associated with normal wear and tear (e.g. tires and tubes, fabrics and coverings, ABS plastic shrouds, motor brushes, external or internal finishes); damage occurred while in process of transit or handling; any parts altered or repaired by unauthorized representatives; parts subjected to misuse, abuse or improper service by the consumer; damage or malfunction resulting from improper operation, maintenance or storage; damage or malfunction resulting from acts of nature or acts of criminal mischief; damage or malfunction resulting from exceeding specified weight limits; items used for commercial, institutional or rental use; unnecessary service calls solely for the purpose of educating the consumer about the use of the product; damage resulting from contamination or battery leakage. Batteries are covered by a separate manufacturer’s warranty and are not covered by this service contract.
ANY EXPRESS COVERAGE NOT PROVIDED HEREIN, ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED MERCHANTABILITY AND OR FITNESS FOR ANY PARTICULAR PURPOSE IS EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of incidental, special or consequential damages, so the above limitations or exclusion may not apply to you.
This Limited-Service Agreement gives you specific legal rights, and you may also have other rights, which vary from state to state.
BEFORE REQUESTING SERVICE: Please review the manufacturer’s operating instruction booklet (if provided) to insure proper installation and correct customer control adjustments. If the problem persists, please call WSR SOLUTIONS at 1-571-748-4999.
TO OBTAIN SERVICE: Contact WSRSOLUTIONS at 1-571-748-4999. Proof of purchase dates are required when requesting service. You may be asked to present your sales receipt or other document, which establishes proof and date of purchase.
