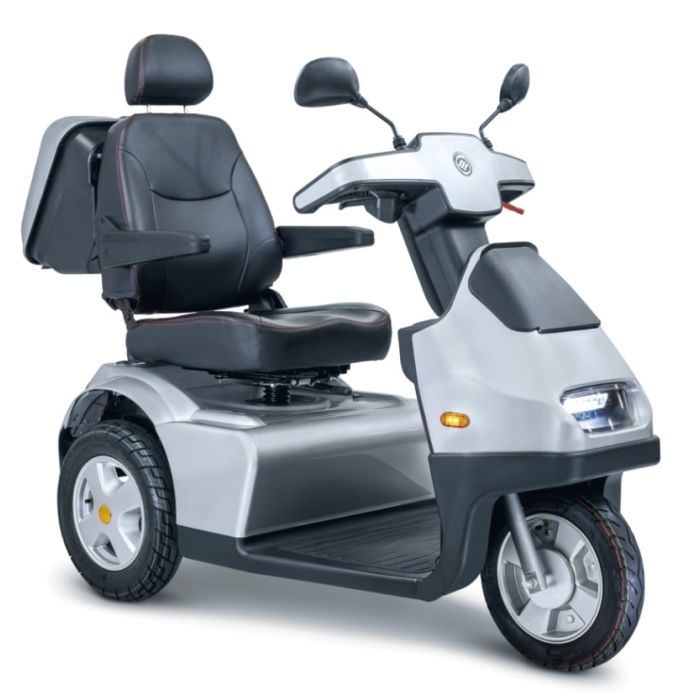

Afiscooter S3

The Afiscooter S3 offers Advanced comfort, Performance and Luxurious look

In stock

Manufacturer: Afikim
Model: S3
MSRP $7,159.00

$5,309.00

Price as configured

SIMILAR MODELS

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Afiscooter C3 in Blue
MSRP $4,799.00

$3,599.00

Price as configured
Merits Pioneer 9 3-Wheel
MSRP $6,337.00

$3,439.00

Price as configured
Raptor 2 3-wheel in matte-black
MSRP $3,799.00

$3,059.00

Price as configured
Pride Maxima 3-Wheel
MSRP $4,379.00

$3,069.00

Price as configured

The Afiscooter S, by Afikim, is winner of the prestigious Red Dot Design Award. It offers an impressive driving range, an ergonomic design to make the ride more comfortable, a programmable electronic controller, LCD control screen and LED headlights. The Afiscooter S has a fully adjustable tiller and an integrated canopy for protection from sun and light rain. The Afiscooter S has a fully adjustable orthopedic seat, full suspension and a shock-absorbing steel frame. The 3 wheel model has superb maneuverability and unrivaled ease of steering. This scooter is also known as the Breeze S3

  • Fully adjustable swivel orthopedic seat with a movable headrest and armrests
  • Shock-absorbing steel frame
  • Adjustable reach configuration using a single button for forward/reverse
  • Bright, easy to read LCD display control panel indicates speed, battery status, lighting and signaling
  • Powerful, long-lasting, energy efficient LED headlights provide more light and a great driving range
  • Optional fully adjustable tiller and an integrated canopy for protection from sun and light rain
  • New Rubber (PU) shock absorbing front bumper to maximize the protection and safety of the driver.
  • An ergonomic tiller with a bright, easy to read and improved LCD display.
  • A Luxurious orthopedic rotatable seat with a high backrest that provides comfort while driving and ease boarding (offered in three widths: 20”, 22” & 24”).
  • Powerful, long-lasting, energy efficient LED headlights.
  • The option of Wide GT tires, for extra traction and stability together with the high chassis clearance give the Afiscooter S off Road performance.

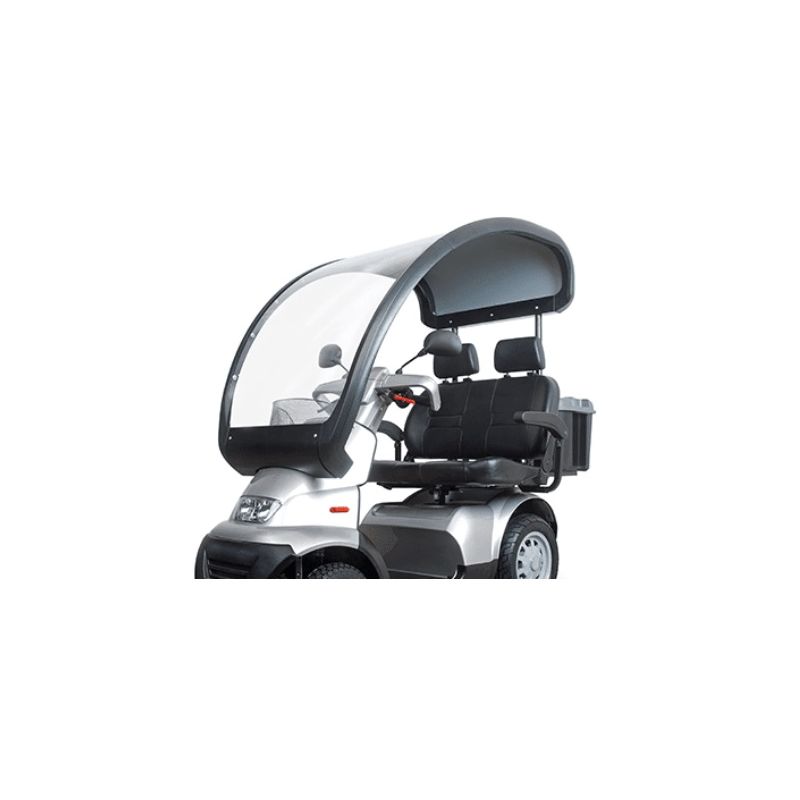

  • Optional Hardtop canopy with ergonomic design to ensure comfortable ride in all weather conditions.
  • Optional Golf Tires on Rear (16" x 8")
  • Extremely spacious

Details and Specifications for the Afiscooter S3

Overall Length

60 in

Overall Width

27 in

Folded height(C) – for transport

37.4 in

Overall height without Canopy

49 in

Overall Height with Canopy

65 in

Ground Clearance

5 in

Total mass (G)

364 lbs

Load Capacity

500 lbs

Motor Type

1400 Watt

Mass of the heaviest part (H)

51 lbs / 23 kg (Battery)

Theoretical Distance Range

25-32 mile / 40-50 km

Obstacle climbing

4.5 in / 120 mm

Maximum speed forward**

9.3 Mph / 15.0 km/h

Minimum braking distance from max speed***

9.8 ft / 3,000 mm (on the flat)

Pneumatic Tyres

3.00-10"
3.50-10"

Pressure of front tyres:
Pressure of rear tyres:

25 psi / 1.7 bars
25 psi / 1.7 bars

Battery type
Capacity
Charger
Dimensions

Lead Acid /Gel/dry, 2x12 V
70 -85 Ah max.
Charge current 12Amp.max.
10.4 in x 6.9 in x 9 in / 265mm x 175mm x 230mm

Seat plane angle

Effective seat depth (M)

18 in / 455 mm

Effective seat width (N)

20 in / 510 mm

Footrest to seat distance (at
front edge) (O)

17 in / 430 mm
19.3 in / 490 mm

Backrest angle (P)

90° - 105°
Backrest height 25.5 in / 650 mm

Armrest to seat distance (K)

11.5 in / 292 mm

Handrim diameter (S)

1 in / 25 mm

Minimum turning radius (Y)

56.3 in / 1430mm

Minimum turn-around radius (Z)

44.5 in / 1130mm

Charger for charging dry/gel acid battery

24VDC max charge 8 Amp.

(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.

Manual and Videos for the Afiscooter S3

Owners Manual: Owners Manual Link

Brochure: Brochure Link

Warranty for the Afiscooter S3

2 Year Bumper to Bumper, parts and labor. Excludes Wear and Tear items such as light bulbs, tires, upholstery, etc.
