Harmar AL425 Axis II Fully Powered Inside Lift

Manufacturer: Harmar
Model: AL425

Be the first to review this product

Msrp: $3,199.00

Availability: In stock

From: $2,399.00

To: $4,112.00

Price as configured: $2,399.00

Add to Wishlist
For More Information
Call: (800) 987-6791

Popular Features

From its visually pleasing appearance to its highly adaptable design, the AL425 sets a new standard for inside lifts. Fully powered lifting and rotation, coupled with an optional wireless remote, make the AL425 the easiest to use and install inside lift in the industry. It is the perfect solution to stow your power chair or scooter inside your van, truck or SUV.


Weather Resistant Remote hand control

Harmar AL425 Axis II Fully Powered Inside Lift-31Harmar AL425 Axis II Fully Powered Inside Lift-31
Move your mouse over image or click to enlarge

More Views

  • Harmar AL425 Axis II Fully Powered Inside Lift-01
  • Harmar AL425 Axis II Fully Powered Inside Lift-01
  • Harmar AL425 Axis II Fully Powered Inside Lift-01
  • Harmar AL425 Axis II Fully Powered Inside Lift-01
  • Harmar AL425 Axis II Fully Powered Inside Lift-01
  • Harmar AL425 Axis II Fully Powered Inside Lift-01

Details

Call (800) 987-6791
For Over the Phone "Exclusive" Offers

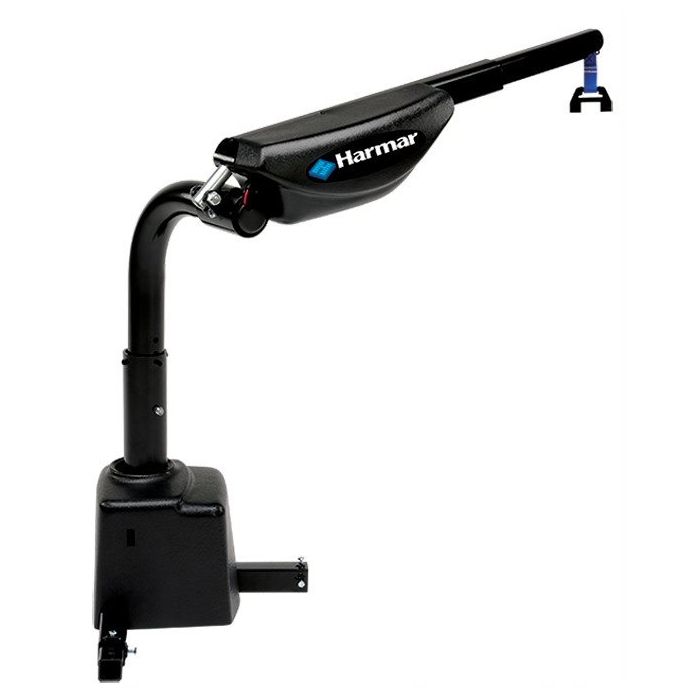

AL425 Axis II / 2-Axis Inside Lift

The AL425 is Harmar’s premier inside, boom-style lift.

From its visually pleasing appearance to its highly adaptable design, the AL425 sets a new standard for inside lifts. Fully powered lifting and rotation, coupled with an optional wireless remote, make the AL425 the easiest to use and install inside lift in the industry. It is the perfect solution to stow your power chair or scooter inside your van, truck or SUV.

With the AL425, there’s no reason not to get out and enjoy life!

Model AL425

  • Fully powered lifting and rotation for effortless loading
  • Only 30” of headroom required
  • Extremely adjustable base & boom
  • Offset post allows the mobility device to be safely unloaded on the side of the vehicle
  • Can be installed on either side of vehicle
  • Weather-resistant
  • Optional fold down arm

Call (800) 987-6791
To Speak with a Mobility Specialist Now!

Harmar AL425 Axis II Fully Powered Inside Lift. Buy a Harmar AL425 Axis II Inside Lift, Fully powered lifting and rotation for effortless loading (2-Axis). Call Scooter Direct, 1-800-987-6791 today!

  • Price: $38.00
  • Model: AL425
  • Product ID: AL425

Details

Lifting capacity - 400 lbs (181 kg)

Operation - Power lifting & rotation

Adj. Boom Height - 30” - 40”

Adj. Boom Length - 23.5” - 33.5”

Adj. Boom Pitch - 0 to 30 degrees

Adj. Rotation Limit - Yes



*Docking Device Included.



HARMAR DOCKING DEVICES & ACCESSORIES

Harmar mobility offers a complete line of docking devices and options for use with  the AL055, AL065, AL200, and AL400 series of Powerchair, wheelchair and scooter lifts. These devices allow the different styles of scooters and power wheel chairs on the market today to easily attach to the lift end for easy loading and unloading.

Because the variety of ways that scooter and power chairs are manufactured, not every docking device will work with every style of scooter or wheelchair.

T-Bar Docking Device- This docking device is for use with most scooters with a seat post.

To use this device, the seat of the scooter must be removed so the hook on the strap an attach unless it is used with a C-Arm which allows the seat to be left (see below).

The loop is adjustable to allow the vehicle to be lifted over its center of gravity.

The generic docking device is the minimum device required to lift most scooters and comes standard with all Inside Lifts

----------------------------------------------------------------------------------------------------------------

  • DD14 : Powerchair briddles only 18" coated w/hardware (also listed as AL260)
  • DD16 : T-Bar Docking Device. Free with lift purchase (must remove seat, can′t use C-arm option
  • DD17 : T-Bar Docking Device. Sold separately (must remove seat, can′t use C-arm option
  • DD18 : Docking Device for use with C-arm option.
  • DD22: Manual Wheelchair Docking Device - Flat loading
  • DD22 : Manual Wheelchair Docking Device - Upright loading

----------------------------------------------------------------------------------------------------------------------

C-Arm :

This is a device that is used in many cases with the generic docking device to allow the scooter to be lifted without the removal of the seat.

This handy device comes in two different sizes to accommodate the many different types of seats that are on scooters.

The C-arm′s come in regular size (8.5" opening) or in a tall size (10.5" opening)



--------------------------------------------------------------------------------------------------------------------------

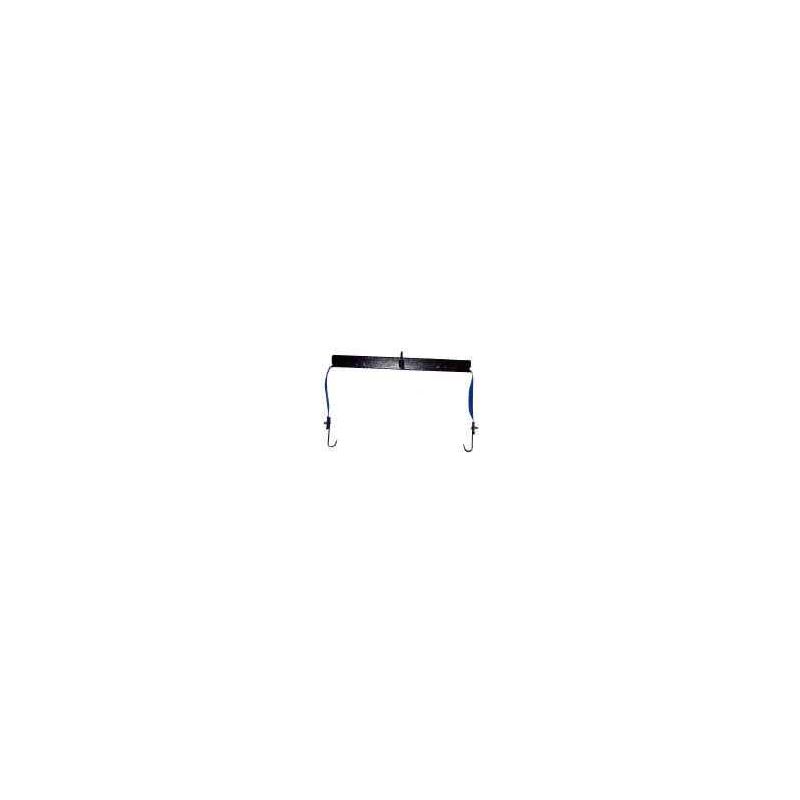

Spreader Bar- DD20 This device is used for lifting many different types of power wheelchairs. This unit allows the chair to be lifted by hooking to the frame of the chair.

It has adjustable straps on each side which allows the spreader bar to attach to be used with different styles of docking devices such as the twin docking device or the power chair bridles that are shown below.

This device spans the seat of the chair and picks it up from the sides. Part# DD20,DD21

----------------------------------------------------------------------------------------------------------------------------

Power Chair Bridles- This type of docking device is used when the other types of docking devices are not applicable. The bridles attach to the frame of the power chair and are used in conjunction with the spreader bar.

On many chairs the bridles will attach using existing bolt holes in the frame.

Although, there are times when holes must be drilled to allow proper attachment of the bridles to the frame of the chair being used.  part# DD14

-------------------------------------------------------------------------------------------------------------------------------

Offset Post option- For tailgate or curbside applications, the offset post option is the answer. The 10 inch offset and 190 degree rotation provides additional clearance around tailgates on trucks and suburban′s or for lifting full assembled scooters or chairs into the back of full size or mini vans and station wagons.

This option is available exclusively on the AL200 and AL400 wheelchair and scooter lift models.

Tall Post Option- When additional lifting height is required and the extra headroom is available, the tall post option fits the bill. Minimum clearance of 37 inches is required when using this option. This option is available exclusively on the AL410 and AL420 wheelchair and scooter lift models.

  •



    Harmar Inside lift docking device kits and Optional Accessories

    (FREE SHIPPING with Lift purchase)

    DD14

    Power chair bridles

    DD16

    Free T-bar docking device with lift purchase (must remove seat)

    DD17

    T-Bar docking device (must remove seat)

    DD18

    Telescoping docking device for adjustable C-Arm (Included with C-arm)

    DD19

    Adjustable C-arm (with telescoping docking device)

    DD20

    Spreader Bar docking device (T-bar style)

    DD21

    Spreader bar docking device with power chair bridles

    PO02

    Offset post upgrade for tailgates

    PO03

    Tall post upgrade (requires 37" of headroom)

    AT01

    All thread kit for irregular floors





H28010: Vehicle Wiring Harness w/ Full Length Ground Wire (included for free with all electric lifts)

ALA48010R3 & ALA28010- Hand Controls for inside lifts (AL600, AL200, AL400, AL065 & AL055)

ALA123 : Class 3 Hitch Adapter Standard. 7.5" Length

ALA125 : Extra Long Class 3 Hitch Adapter Standard. 13.5" Length

ALA126 : Class 2 Hitch Adapter Standard. 7.5" Length

ALA127 : 3" Longer Class 2 Hitch Adapter Standard. 10" Length

ALA1235 : 5" Step Down Class 3 Hitch Adaptor







ALA590 : Wide Anchor Plate 24"

ALA58040 : Standard Anchor Plate for AL500 19"

DD20 Spreader Bar- This device is used for lifting many different types of power wheelchairs. This unit allows the chair to be lifted by hooking to the frame of the chair. It has adjustable straps on each side which allows the spreader bar to attach to be used with different styles of docking devices such as the twin docking device or the power chair bridles that are shown below. This device spans the seat of the chair and picks it up from the sides. Part# DD20,DD21

Details

Video   Video Link

Details

3 YEARS TRANSFERABLE MANUFACTURER′S WARRANTY
