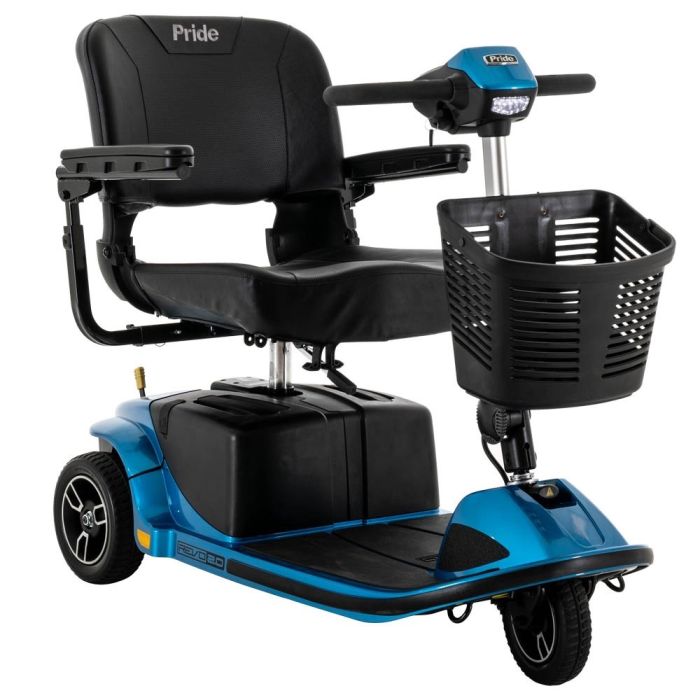

Pride Revo 2.0 3-Wheel
Rugged dependability with Comfort-Trac Suspension (CTS) which ensures a smooth and comfortable ride
FREE Front, Rear Baskets and Cup Holder
FDA Class II Medical Device*
Experience the Pride Revo 2.0, a reboot of a new class of scooter that combines an array of features into one great package. Tough and built to last, the Revo 2.0 offers the rugged dependability and weight capacity you would expect from mid-size scooters. The Comfort-Trac Suspension ensures a smooth and comfortable ride over a variety of terrains. Convenient, feather-touch disassembly for portability that is comparable to Travel Mobility line of scooters.
Highlights of the Pride Revo 2.0 3-Wheel
- Comfort-Trac front and rear suspension
- Durable and stylish rear bumper
- Easily accessible tie down points (for transport of unoccupied scooter)
- Easily adjustable tiller
- Black, flat-free, non-scuffing tires
- 20" x 18" Seat designed for extreme comfort
- LED headlight
- Standard front basket
- Ultra heavy-duty drivetrain with 70 amp controller
- User-friendly console
- USB mobile device charging port
- FREE Accessories Included
Summary Specs of the Revo 2.0 3-Wheel
- Top Speed: 5.2 MPH
- Driving Range: 12 Miles
- Ground Clearance: 3.25" at mid-frame
- Turning Radius: 40"
- Carrying capacity: 400 lbs.
- 48 lbs. (rear section)
- Total Weight: 170 lbs.
Ideal uses for the Pride Revo 2.0
- Great outside use or commercial indoor use
- Easy transport in most vehicle
Details and Specifications for the Pride Revo 2.0 3-Wheel
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Revo® 2.0 3-Wheel
|
| Model Number1 |
S66
|
| Number or Tires | 3 |
| Front Tires2 | 3"x8" |
| Rear Tires2 | 3"x9" Solid |
| Maximum Speed8 | Up to 5.2 mph |
| Ground Clearance | 1.25" at transaxle; 3.25" at mid-frame |
| Turning Radius2 | 40" |
| Length2 | 46" |
| Width2,4 | 20.75" |
| Seat-to-Ground Height Range2 | 22"-23.5" |
| Seat-to-Deck Range2 | 15"-16.5" |
| Standard Seat Type | Compact, Foldable; Materal: Black Vinyl; Seat Size2: 20"x18" |
| Weight Without Batteries2 | 120 lbs. |
| Weight With Batteries | 170 lbs. |
| Weight of Heaviest Piece2 | 48 lbs. (rear section) |
| Battery Weight6 | 25 lbs. each |
| Battery Requirements7 | (2) U1 |
| Per Charge Range (max)8,9 | Up to 17.4 miles (200 lbs.); Up to 12.8 miles (400 lbs.) |
| Battery Charger | Off-board, 3.5A |
| Suspension | Front and Rear |
| Maximum Weight Capacity | 400 lbs. |
| HCPCS Code | K0899** |
| Warranty | Lifetime limited on frame; 2-year limited on electronics; 2-year limited on drivetrain |
| Color Options | Grey Street, True Blue |
1 Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
2 Due to manufacturing tolerances and continued product improvement, this specification is subject to a variance of +/- 3%
3 Width of base (not including seat).
4 Battery weight not included.
5 Includes standard seat weight.
6 Battery weight may vary based on manufacturer.
7 Deep cycle (AGM or gel cell type recommended).
8 Varies with user weight, terrain type, battery amp- hour (AH), battery charge, battery condition and tire condition. This specification can be subject to a variance of (+ or -) 10%.
9 Tested in accordance with ANSI/RESNA, WC Vol 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
WARNING: This product can expose you to chemicals including lead and lead components, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture
Manual and Videos for the Pride Revo 2.0 3-Wheel
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the Pride Revo 2.0 3-Wheel
In-Home Labor Warranty- 1 year
- Lifetime limited warranty on frame
- 6 months battery
- 2-year limited warranty on electronics
- 2-year limited warranty on drivetrain
