Mini Electric Scooter Lift

Manufacturer: WheelChair Carriers
Model: 117
Rating:
100%
MSRP $1,299.00 MSRP $1,299.00 What's this? $999.00
Price as configured

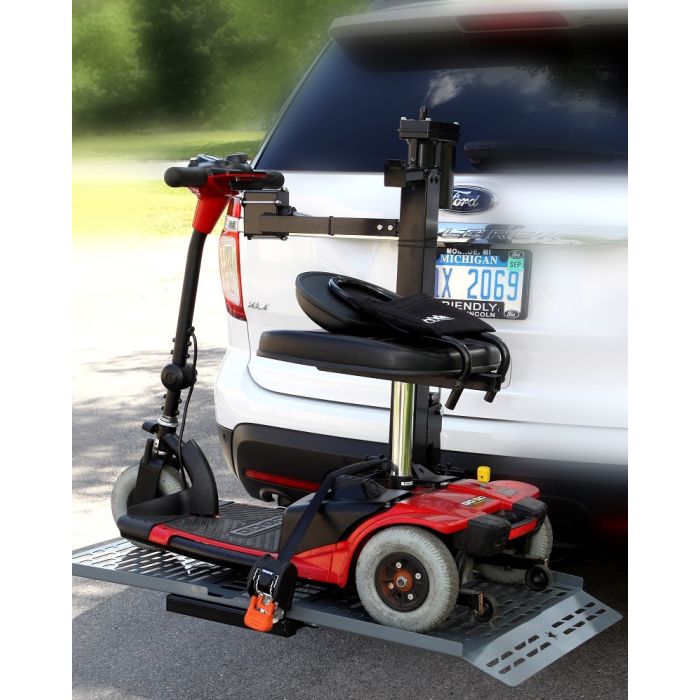

The Mini Electric Lift is ideal for transporting small portable mobility scooters.

Optional Swing Away

Fully Powered, Model 117, Mini Electric Lift by Wheelchair Carrier

Ideal for transporting smaller 3 and 4 wheel mobility scooters such as the Go-Go, Spitfire and Buzzaround models!

This lift supports up to 200 lbs, comes with two retractable ratchets, up to 24" of lifting possible, easy push button operation and many more features. No need for any manual lifting! The 37” X 22” platform accommodates most portable scooters.

Features include easy push button operation and a set retractable ratchet straps for securing your chair to the carrier.

A hand crank is also included with the carrier in case of power loss.

This model is available for 1.25" x 1.25" (Class I and Class 2) and 2" x 2" (Class 3) hitches depending on your vehicle.

  • 22" X 37" of usable platform
  • Capacity: 200 lbs
  • Weight: 88 lbs
  • 24” of possible ground clearance for smooth traveling
  • Automatically folds up to stowaway position
  • Switch box allows for easy operation of the lift
  • Includes 2 retractable ratchets for securing the chair
  • Includes 21’ wire harness with 30 amp resettable circuit breaker
  • Can accommodate 1 1/4” or 2” square hitch receiver
  • Ask about our Power Booster Box if you have a weaker battery


Details and Specifications for the Mini Electric Scooter Lift

Model 117 Mini Electric Lift Product Specifications

  • 22" X 37" of usable platform
  • Capacity: 200 lbs
  • Weight: 88 lbs
  • 24” of possible ground clearance for smooth traveling
  • Automatically folds up to stowaway position
  • Switch box allows for easy operation of the lift
  • Includes 2 retractable ratchets for securing the chair
  • Includes 21’ wire harness with 30 amp resettable circuit breaker
  • Can accommodate 1 1/4” or 2” square hitch receiver
  • Ask about our Power Booster Box if you have a weaker battery



Model 130 Swing Away Product Specifications

  • Swing Away weight: 34 lbs
  • Swing Away + Lift N Go weight: 127 lbs
  • Weather-resistant powder coat finish
  • Available for Class 2 and Class 3 hitches

Manual and Videos for the Mini Electric Scooter Lift

Owners Manual: Owners Manual Link

Brochure: Brochure Link

Video: Video Link

Warranty for the Mini Electric Scooter Lift

3 Year Transferable Limited Warranty

Every effort has been made to insure high quality in material and workmanship of our products. Manufacturer warrants all products to be free of defects in material and/or workmanshipfor three (3) years from date of original purchase.

EXCEPTIONS: 1 year warranty on all Electrical components including motor and actuator.

All custom orders have a 90~day warranty.

CARRIERS: All carriers are warranted to be free of defects in material and/or workmanship for three (3) years from date of original purchase when used in accordance with manufacturer installation and operating instructions. This warranty does not cover damage due to abuse,misuse, accident, or use of unauthorized attachments or modifications. Protective finish coating on carriers is not guaranteed in as much as the manufacturer is not responsible for the use(abuse or natural wear and tear) of the product.

The manufacturer and/or selling agents ofcarriers will not be responsible in any way for damage to, or loss of, item(s) being carried or falling from carriers or damages said item(s) may cause on or off carriers.

All shipping charges for parts under warranty must be prepaid by the customer.
