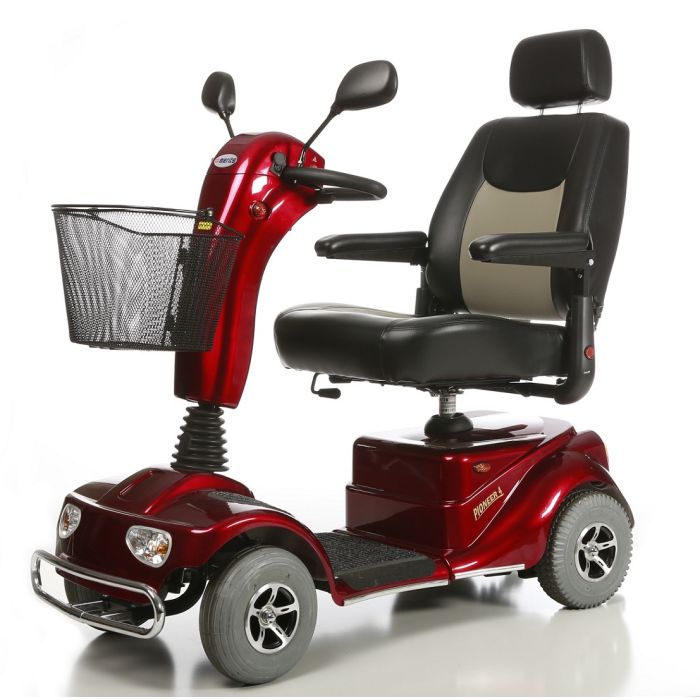

Merits Pioneer 4 Heavy Duty Scooter

Manufacturer: Merits
Model: S141
Rating:
96%
MSRP $4,224.00 MSRP $4,224.00 What's this? $2,381.00
Price as configured

Most popular 4 Wheel model with on-board charger,take apart frame, height and width adjustable arms, headlight, adjustable steering column, adjustable seat height, fold down back,anti tip rear wheels, aluminum allow wheels, side reflectors, rear seat pocket, and horn.

Headlights and Captain Sliding Seat

  • This Merits scooter has High-torque drive train allows for increased power and maneuverability.
  • Flip-up armrests with height, width & angle adjustability for more comfort.
  • Steel bumper protects shroud from scratches and serves as a lift handle, with anti- tippers.
  • One-piece frame design/ Sliding captain seat
  • Headlight, tail lights, turn signals & hazard lights
  • Colors available: Red
  • Flat Free Tires
  • Limited lifetime warranty on frame
  • Loop Tiller with Mech-a-Lock quick adjustment
  • New tiller with Mech-a-Lock; angle can be easily adjusted by cylinder for setting the right driving position and for easily getting on and out of the vehicle.
  • Free Tiller Cover
  • Free Rearview Mirror
  • Tiller Charger Port
  • Merits mobility scooter has a left hand mirror
  • Power Elevating Seat Option (Available in Red Only)
    • 5" of Electric Elevation
    • Available only on Red Scooter color

Details and Specifications for the Merits Pioneer 4 Heavy Duty Scooter

Model  S141
Driving Range  18 mi.
Max Speed  5 mph
Battery Type  12V / U1 x 2 pcs
Motor  DC 24V, 250W (Rating) / 915W (Max)
Max Climbing Angle  10°
Weight Capacity  400 lb
Total Weight  189 lb
Turning Radius  52"
Ground Clearance  4"
Seat Dimension  20" Wide x 18" Deep
Seat Height from ground  22" - 25"
Seat Height from deck  16" - 19"
Seat Height  20"
Wheelbase  33"
Width  23"
Battery  12V/U1(34AH)
Charger  5A ON-board
Controller  Dynamic Rhino 2 120A
Charger  Dynamic Rhino 2 120A
Front wheel  10" Foam filled tire
Rear wheel  10" Foam filled tire
Base  97 lb
Battery  26 lb X 2
Seat  40 lb
Brake  Intelligent, regenerative, electromagnetic brakes

Manual and Videos for the Merits Pioneer 4 Heavy Duty Scooter

Warranty for the Merits Pioneer 4 Heavy Duty Scooter

    18 Month limited parts warranty on electronic controller and drive train component
    Six Month Battery Warranty
