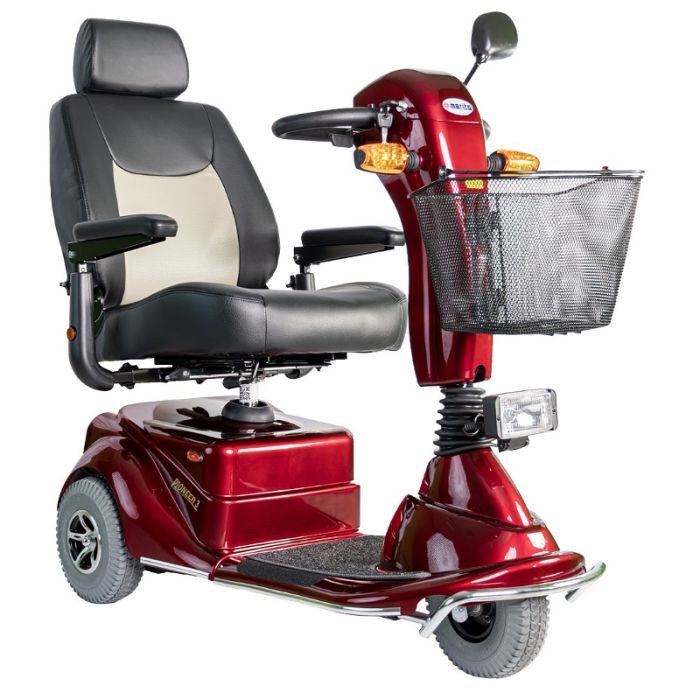

Merits Pioneer 3
Three wheel scooter, with Captain High Back Sliding (Backward/Forward) with adjustable seat height, height & width adjustable arms, fold down back, flip-up arms, adjustable steering column, headlight, turn signals, hazard lights, horn, includes charger.
Sliding Captains Seat
- This Merits Pioneer scooter has High-torque drive train allows for increased power and maneuverability.
- Flip-up armrests with height, width & angle adjustability for more comfort.
- Steel bumper protects shroud from scratches and serves as a lift handle, with anti- tippers.
- One-piece frame design/ Sliding captain seat
- Headlight, tail lights, turn signals & hazard lights
- Colors available: Red / Blue
- Flat Free Tires
- Limited lifetime warranty on frame
- Loop Tiller with Mech-a-Lock quick adjustment
- New tiller with Mech-a-Lock; angle can be easily adjusted by cylinder for setting the right driving position and for easily getting on and out of the vehicle.
- Free Tiller Cover
- Free Rearview Mirror
- Tiller Charger Port
- Merits mobility scooter has a left hand mirror
- Power Elevating Seat Option (Available in Red Only)
- 5" of Electric Elevation
- Available only on Red Scooter color
Details and Specifications for the Merits Pioneer 3
Max Speed: 5mph
Range: up to 18 miles
Turning Radius: 39"
Ground Clearance: 4"
Motor: DC 24V, 210W
Controller: Dynamic Rhino 2

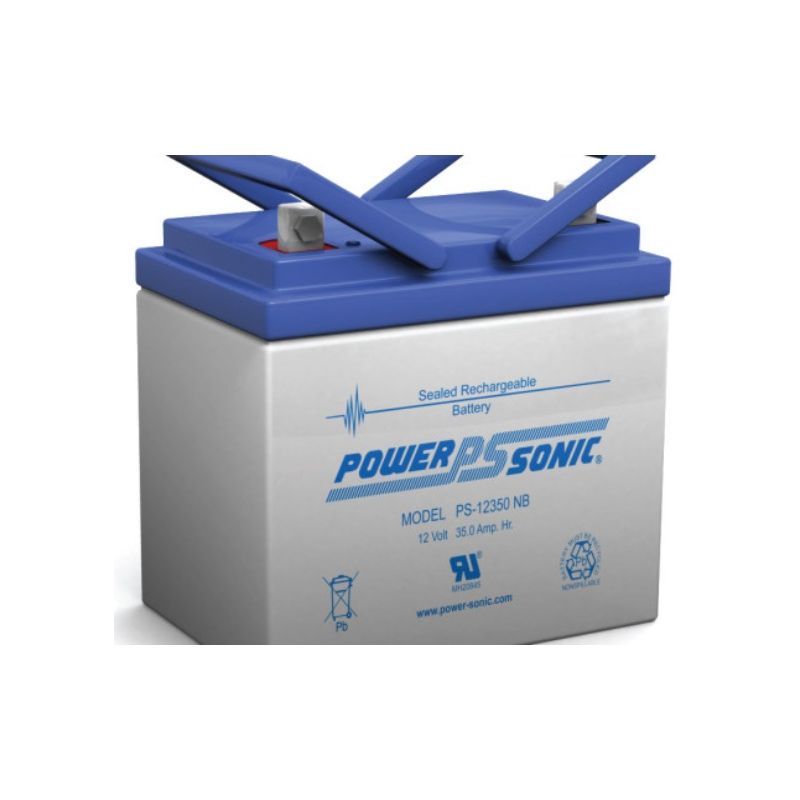

Battery: 12V/U1(34AH) x 2pcs or Group 22
Charger: 5A ON-board
Casters: 10" flat free tires
Drive Wheels: 10" pnuematic tires
Brakes: intelligent, regenerative, electromagnetic brakes
Weight Capacity: 400 lbs.
|Seat Height from deck||16 - 19|
|Seat Height from ground||25 - 28|
Manual and Videos for the Merits Pioneer 3
Warranty for the Merits Pioneer 3
18 Month limited parts warranty on electronic controller and drive train component
Six Month Battery Warranty
