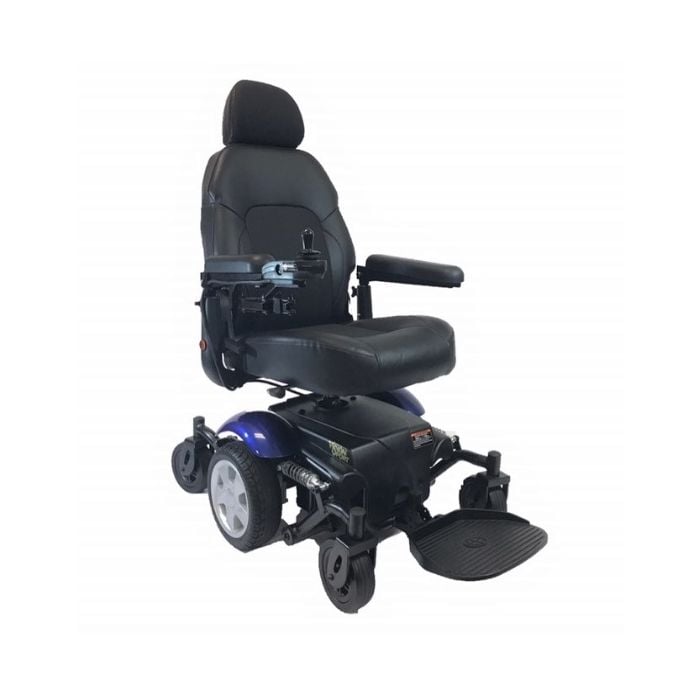

Merits P326A Vision Sport Mid-Wheel Drive Powerchair
Compact mid-wheel drive design for tight space maneuverability
The Merits Vision Sport Mid-Wheel Drive Powerchair has full suspension and the mid-wheel drive design allows for easy maneuverability in small compact spaces. The 20" captain seat with height and width adjustable arms and semi-reclining back provide extra comfort. The dual in-line motors provide enhanced efficiency, torque, range and performance. The swing-back joystick mount is standard and allows for easy accesibility to a table or desk.
- Max Speed: 5mph
- Range: up to 18 miles
- Turning Radius: 20"
- Ground Clearance: 2"
- Motor: DC 24V, 160W
- Controller: Dynamic LiNX
- Battery: 12V/U1 x 2pcs
- Charger: 4A off-board
- Gradient: 6°
- Casters: 6" front and rear solid tires
- Drive Wheels: 10" solid tires
- Brakes: intelligent, regenerative, electromagnetic
- Full suspension
- No rear tipping on footplate standing (up to 250 lbs.)
- 300 lb weight capacity
- Dual in-line motors for enhanced efficiency, torque, range and performance
- Swing back joystick mount is standard
- Height and width adjustable arms
- Semi-reclining back
Details and Specifications for the Merits P326A Vision Sport Mid-Wheel Drive Powerchair
Product Number | P326A |
Weight Capacity | 300 lbs |
Drivetrain | MWD |
Seat Type | Captain or Pan |
Seat Width | 16”-20" |
Seat Depth | 16"- 20" |
Backrest Height | 20" |
Seat-to-Floor Height | A: 20.5”-22.5” |
Overall Length | 34" |
Overall Width | 24" |
Overall Height | 48.5" |
Turning Radius | 20" |
Ground Clearance | 2" |
Total Weight | 184 lbs |
Wt of Heaviest Pc | 90 lbs |
Max Speed | 5 mph |
Per Charge Range | up to 18 miles |
Motor | DC 24V, 160W |
Controller | Dynamic LiNX 40A |
Battery Size (2) | 12V/U1 (34AH) |
Charger | 4A off-board |
Gradient | 6 ° |
Front Wheels | 6" solid |
Drive Wheels | 10" solid |
Rear Wheels | 6" solid |
Group | Group: 2 |
HCPCS Code | K0822 |
Standard Colors | Red or Blue |
Manual and Videos for the Merits P326A Vision Sport Mid-Wheel Drive Powerchair
Owners Manual: Owners Manual Link
Brochure: Brochure Link
Warranty for the Merits P326A Vision Sport Mid-Wheel Drive Powerchair
18 Month limited parts warranty on electronic controller and drive train component
Six Month Battery Warranty
Extended Service Plans Details
- Effective date starts when product is purchased by the customer
- Contracts can only be purchased at the point of sales (can’t be purchased after the fact)
- Contracts are valid on scooter and standard power wheelchairs
Service Plan Cover Labor Costs
- During the contract period specific parts costs are covered under warranty, these parts and time periods are specified in the owner’s manual
- After parts warranty has expired there may be charges for any additional parts needed.
What is Not Covered Under War-ranty
- Any damage or issue that was caused by product misuse. Misuse is outlined in the product own-er’s manual
- Instructional use of product
- Programming to customer's needs
- Adjustments or fittings to meet customer’s needs
- Issues regarding, fabric, tires or any wear-and-tear components
- Shipping Damage or product set-up
- Batteries
Procedure for Requesting Service
- Customers should call Merits Health Products to request service at 1-800-963-7487
Information needed to process Service Call
- Model and Serial Number
- Customer’s name, address and phone number
- A detailed description of issue
- Customer should discontinue use of product immediately upon discovery of problem
- Technical service will enter all information and request a technician dispatch
- The closest technician will be contacted and given a work order to complete the repairs
- Field service jobs are typically set up in 24-48 hours of initial request
- The customer is contacted within 24hrs of the job being set-up to advise them who will be calling to schedule a home visit.
- If there is no technician in the area one will be recruited. This process can take up to 5-7 busi-ness days depending on the location.
- Upon receipt of parts the technician will con-tact the customer to set-up an appointment that.
