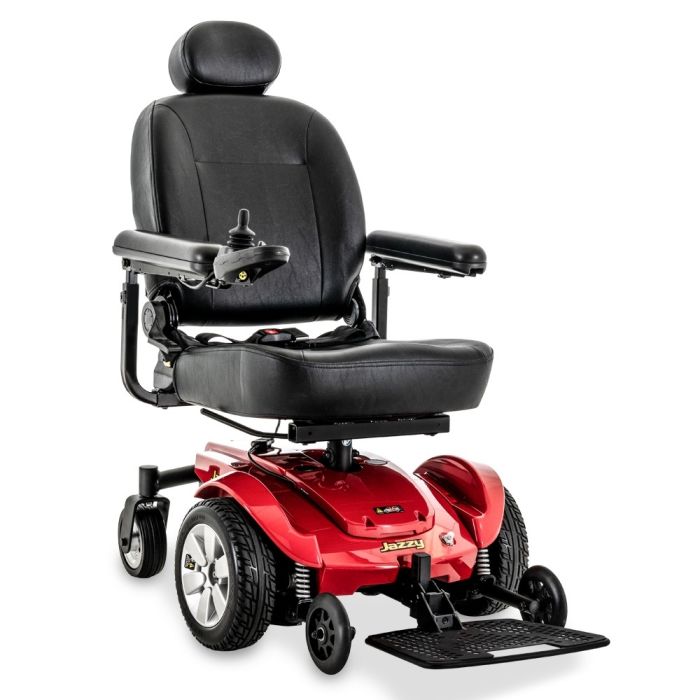

Jazzy Select®. Equipped with Active-Trac® Suspension, this power chair ensures a smooth, comfortable ride over uneven terrain.
FDA Class II Medical Device*
Experience the simplicity and maneuverability of the Jazzy Select®. Equipped with Active-Trac® Suspension, this power chair ensures a smooth, comfortable ride over uneven terrain. Powerful dual motors provide exceptional performance and range, and mid-wheel drive offers a tight turning radius. With an easy to use controller, the Jazzy Select is a perfect choice both indoors and out.
- 300 lbs. weight capacity
- Up to 4.3 mph
- 22.5" turning radius
- Up to 19.4 miles per charge
- Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
- Mid-wheel drive offers tight turning radius around doorways and corners
- Comfortable, depth adjustable, limited recline comfort high-back with headrest
- Dual, in-line motors provide greater performance, range and efficiency

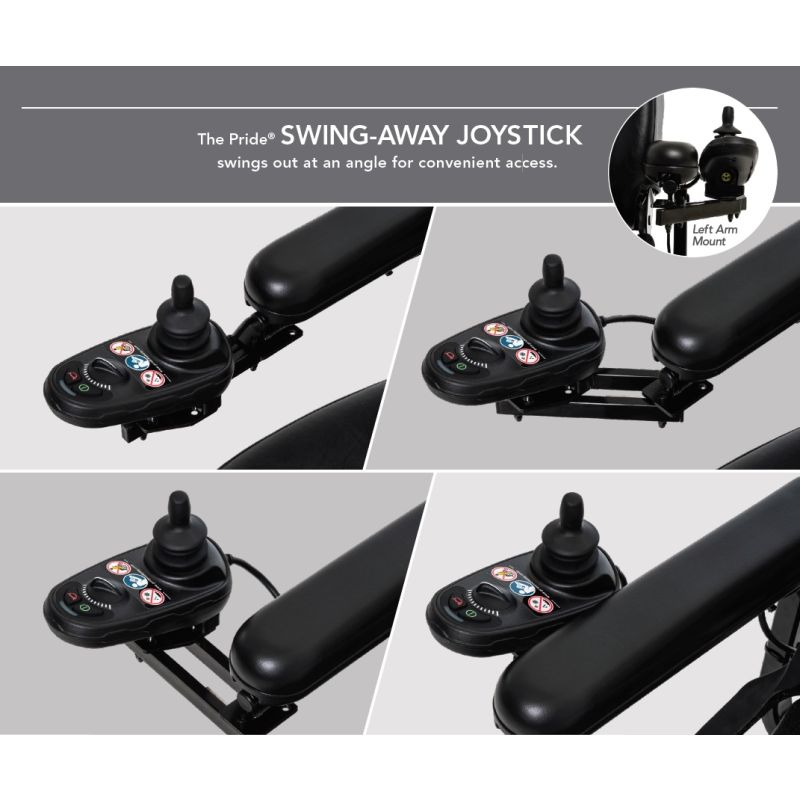

- Intuitive controller is easy to operate
- Easy side access to batteries
- Height and depth adjustable foot platform, offering two positions of height and one position of depth
Details and Specifications for the Jazzy Select
|Weight Capacity||300 lbs.|
|Maximum Speed3||Up to 4.3 mph|
|Ground Clearance1||0.75 at motor bracket|
|Front Wheels||5" solid casters|
|Drive Wheels||10" solid|
|Rear Wheels||6" flat free|
|Drivetrain||Two motor, mid-wheel® drive|
|Braking System||Regenerative and electro-mechanical|
|High-Back Seat||16"x16"-18", 18"x18"-20", 20"x18"-20"|
|High-Back Seat-to-Floor Range||21” – 22”|
|Standard Electronics||40A, PG GC34|
|Battery Size (2 required)||12 volt, U-1|
|Standard Battery Charger||3.5A, off-board|
|Per-Charge Range3,8||Up to 19.4 miles|
|Battery Weight7||25.2 lbs. each|
|Weight of Heaviest Piece5||94 lbs.|
|Per-Charge Range3,6||Up to 16.8 miles (U1), Up to 19.2 miles (40 Ah)|
|Warranty||5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
|HCPCS||Group 2: Standard (K0822/K0823)|
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 40A, PG 6-key VR2 required with Power Elevating Seat Option.
5 Does not include seat or battery weights.
6 Not available with TRU-Balance?.
7 Battery weight may vary based on manufacturer.
8 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
WARNING: This product can expose you to chemicals including lead and lead components, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture.
Manual and Videos for the Jazzy Select
Brochure: Brochure Link
Warranty for the Jazzy Select
- 5-year limited warranty on frame;
- 13-month limited warranty on electronics;
- 13-month limited warranty on drive motors
