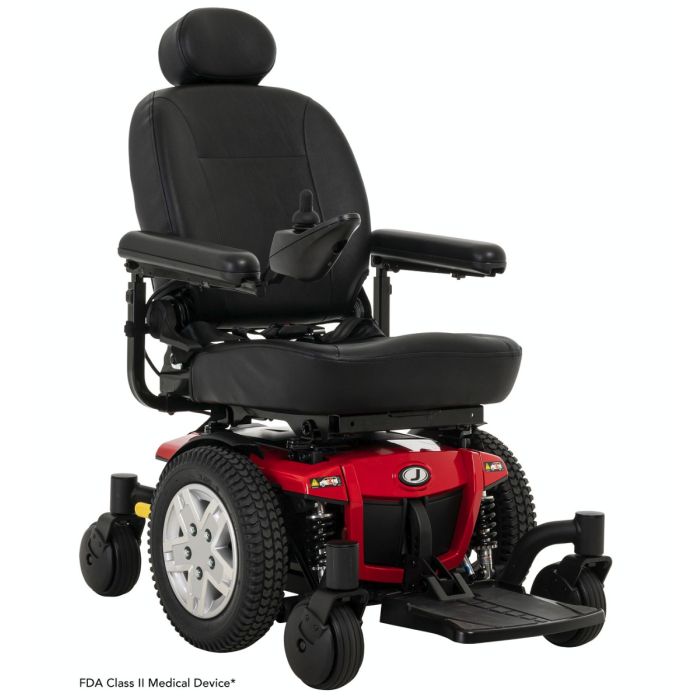

Jazzy 600 ES
The Jazzy® 600 ES power chair provides excellent performance and outstanding stability. Its compact design and standard Active-Trac® ATX Suspension allow it to excel indoors and out, making it a superb, all-around power chair choice.
FDA Class II Medical Device*
Features
- 300 lbs. weight capacity
- Up to 4 mph
- 20.5" turning radius
- Up to 17 miles per charge
- Depth adjustable, limited recline high back seat
- In-line joystick mount
- Flip-up, height adjustable foot platform
- Black, flat-free, non-marking tires
- OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
- Side-mounted, easily accessible freewheel levers
- Active-Trac® ATX Suspension for enhanced performance over more varied terrain
- Easy front access to batteries
Details and Specifications for the Jazzy 600 ES
| Model | Jazzy 600 ES |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 20.5" |
| Width1 | 24.5" |
| Length1,2 | 35.5" |
| Maximum Speed3 | Up to 4.0 mph |
| Ground Clearance1 | 2.75" |
| Front Wheels | 6" solid OMNI-Casters |
| Drive Wheels | 14" foam filled |
| Rear Wheels | 6" solid OMNI-Casters |
| Drivetrain | Two motor, mid-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Active-Trac® (ATX) with Mid-wheel 6® Technology |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 21” – 24” |
| Synergy® Seating | 20”W 20”D |
| Synergy® Seat-to-Floor Range | 17.25” - 19.25" |
| Standard Electronics | 50A, Dynamic Shark |
| Battery Size (2 required) | 12 volt, NF-22 |
| Battery Weight5 | NF-22 at 37 lbs. each |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range3,6 | Up to 17 miles |
| Weight of Heaviest Piece4 | 124 lbs. |
| Standard Seat Weight | 18" wide - 51.8 lbs.; 20" wide - 54 lbs. |
| Standard Seat Size | 16"x16"-18"; 18" x 18"-20"; 20" x 18"-20" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
WARNING: This product can expose you to chemicals including lead and lead components, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture
Manual and Videos for the Jazzy 600 ES
Warranty for the Jazzy 600 ES
One Year In-Home Service Warranty
LIFETIME LIMITED WARRANTY
For the lifetime of your power chair from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Structural frame components, including:
- Main Frame
- Fixed-position seat post
TWO-YEAR LIMITED WARRANTY
For two (2) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic components, including:
- Charger Assembly
- Controller
- Joystick
Main frame assemblies, including:
- Anti-tip forks
- Caster forks
- Caster beam
- Metal seat framing
Other components, including:
- Front riggings
- Electrical Harness
- Front rigging mounting brackets
18-MONTH LIMITED WARRANTY
For eighteen (18) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Motor/gearbox assembly
- Power seat actuator
ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Accessories
- Brakes (electronic function ONLY)
SIX-MONTH LIMITED WARRANTY
For six (6) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Bearings and bushings
- Plastic components, except body
The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Pride effective from the date of purchase.
WARRANTY EXCLUSIONS
This warranty does not extend to those items which may require replacement due to normal wear and tear.
- ABS Plastic shrouds
- Motor brushes
- Upholstery and seating
- Brake Pads
- Tires and tubes
- Fuses/Bulbs
- Circumstances beyond the control of Pride
- Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use, or use other than normal
- Improper operation, maintenance, or storage
NOTE: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period of time, or worn out through heavy use is not covered.
SERVICE CHECKS AND WARRANTY SERVICE
Warranty service must be performed by a Quantum Rehab Provider. Do not return faulty parts to Pride without prior written authorization. All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the purchaser
Failure to follow the instructions, warnings, and notes in the owner’s manual and those located on your Pride product can result in personal injury or product damage and will void Pride’s product warranty.>
There is no other express warranty.
IMPLIED WARRANTIES
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded
This warranty gives you specific rights, and you may also have other rights which vary from state to state. Please fill out and return the product registration card to Pride. This will aid Pride in providing the best possible technical and customer service.
