Afiscooter S4

Manufacturer: Afikim
Model: S4
MSRP $5,850.00 MSRP $5,850.00 $4,507.00
Price as configured

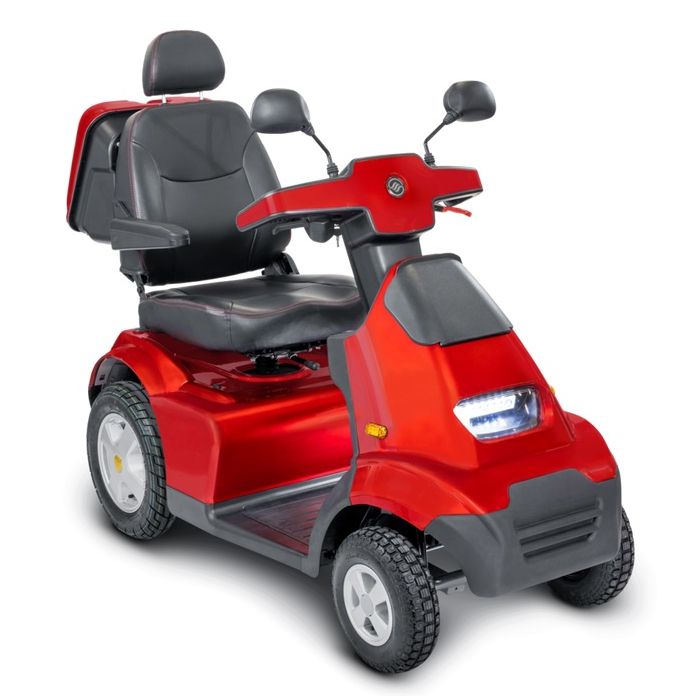

The Afiscooter S4 offers Advanced comfort, Performance and Luxurious look

The Breeze S4 offers an impressive driving range, an ergonomic design to make the ride more comfortable, a programmable electronic controller, LCD control screen and LED headlights. The 4 wheel model suspension and steering systems provide a pleasurable car-like driving experience on long distance trips. This scooter is also known as the Breeze S4.

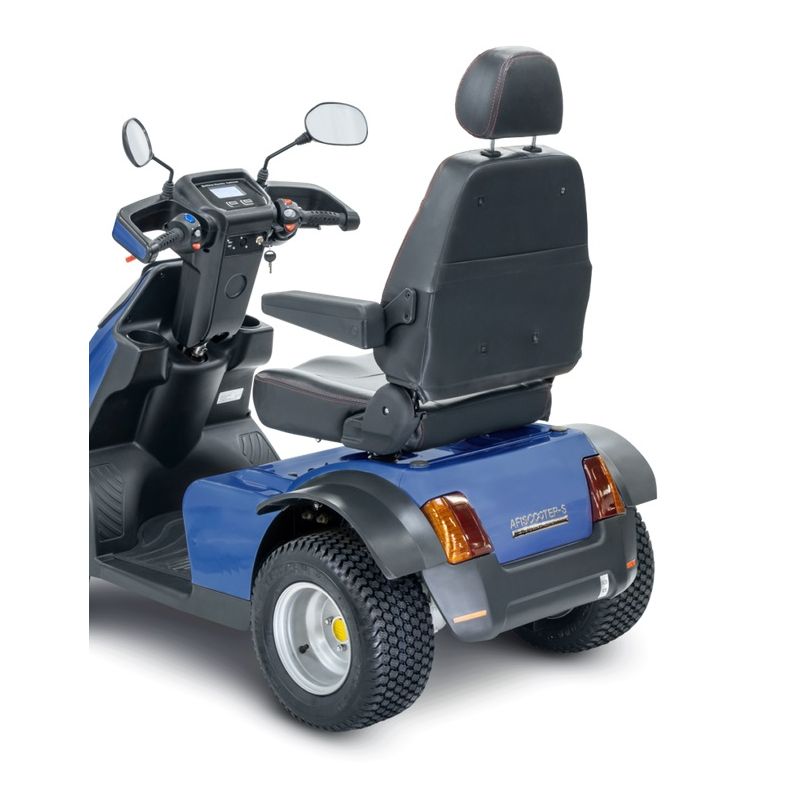

This luxurious vehicle that has a proven record of High Quality and long-lasting reliability can travel comfortability and safely in various types of terrains as rough off-road terrain (using Golf tires) and extreme weather conditions (when using the unique hardtop canopy).

  • Fully adjustable swivel orthopedic seat with a movable headrest and armrests
  • Shock-absorbing steel frame
  • Adjustable reach configuration using a single button for forward/reverse
  • Bright, easy to read LCD display control panel indicates speed, battery status, lighting and signaling
  • Powerful, long-lasting, energy efficient LED headlights provide more light and a great driving range

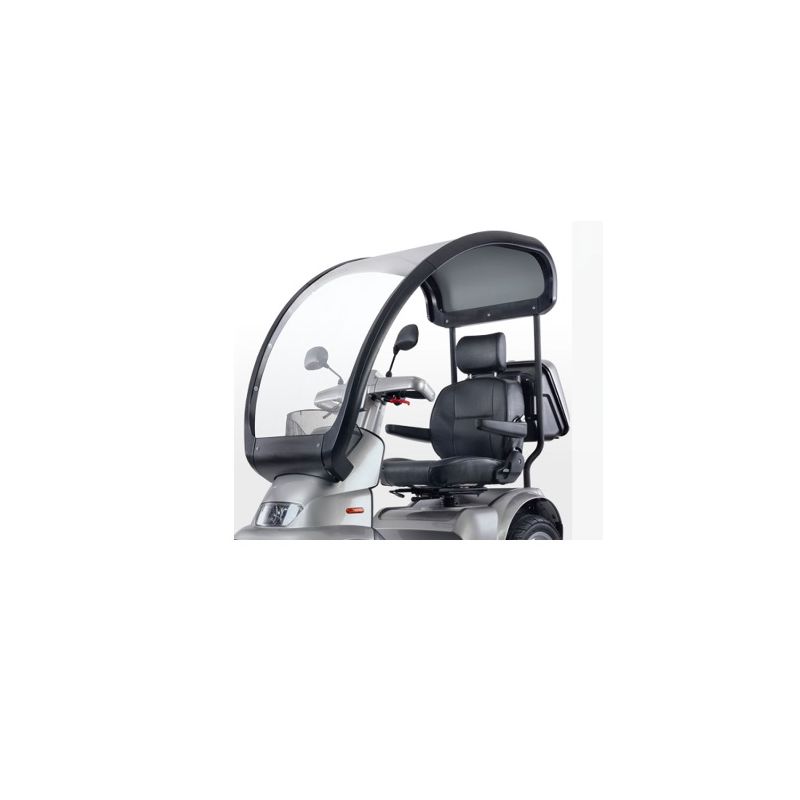

  • Optional fully adjustable tiller and an integrated canopy for protection from sun and light rain
  • Improved Travel range with optional 100Ah Batteries
  • Front Lock Box instead of Front basket
  • Stronger LED Front Light
  • PU (Rubber) Front Bumper
  • New Design of Tiller with LCD Display, USB Charging Port
  • Built-in Cup Holders

Details and Specifications for the Afiscooter S4

Overall Length

64.4 in / 1,635 mm
71.6 in / 1,820 mm

Overall Width

27 in / 680 mm

Folded height(C) – for transport

37.4 in / 950 mm

Overall height without Canopy

49 in / 1250 mm

Overall Height with Canopy

65 in / 1640 mm

Ground Clearance

5 in / 125 mm

Total mass (G)

364 lbs / 165 kg

Load Capacity

450 lbs / 200 kg

Motor type

1400 Watt

Mass of the heaviest part (H)

51 lbs / 23 kg (Battery)

Theoretical Distance Range

25-32 mile / 40-50 km

Obstacle climbing

4.5 in / 120 mm

Maximum speed forward**

9.3 Mph / 15.0 km/h

Minimum braking distance from max speed***

9.8 ft / 3,000 mm (on the flat)

Pneumatic Tyres

4.10/3.50-6"
3.50-10"

Pressure of front tyres:
Pressure of rear tyres:

25 psi / 1.7 bars
25 psi / 1.7 bars

Battery type
Capacity
Charger
Dimensions

Lead Acid /Gel/dry, 2x12 V
70 -85 Ah max.
Charge current 12Amp.max.
10.4 in x 6.9 in x 9 in / 265mm x 175mm x 230mm

Seat plane angle

Effective seat depth (M)

18 in / 455 mm

Effective seat width (N)

20 in / 510 mm

Footrest to seat distance (at
front edge) (O)

17 in / 430 mm
19.3 in / 490 mm

Backrest angle (P)

90° - 105°
Backrest height 25.5 in / 650 mm

Armrest to seat distance (K)

11.5 in / 292 mm

Handrim diameter (S)

1 in / 25 mm

Minimum turning radius (Y)

86.6 in / 2,200 mm

Minimum turn-around radius (Z)

74.8 in / 1,900 mm

Charger for charging dry/gel acid battery

24VDC max charge 8 Amp.

Static stability downhill (T)

>20"
>20"

Static stability uphill (V)

>13"
>20"

Static stability sideways (X)

>10"
>14"

Dynamic stability uphill

>10"
>10"

Manual and Videos for the Afiscooter S4

Owners Manual: Owners Manual Link

Brochure: Brochure Link

Warranty for the Afiscooter S4

2 Year Bumper to Bumper, parts and labor. Excludes Wear and Tear items such as light bulbs, tires, upholstery, etc.
